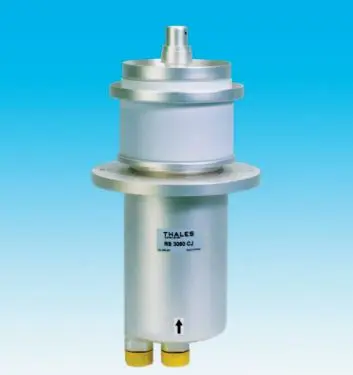

The RS3060CJ is a RF power triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This triode is designed to operate in CW mode. For operation in pulse mode, the parameters depend on each equipment characteristic, contact us for specific information. The RS3060CJ is a water-cooled triode. This product is designed, developed, and manufactured at an ISO 9001 production site.

Brand: Thales
Amplification Factor: 22
Application: Dielectric Heating|Induction Heating|RF Oscillation
Filament Current (A): 190
Filament Voltage (V): 10
Markets: Industrial Equipment
Maximum Frequency (Hz) (MHz): 100
Output Power (kW): 120
Cooling: Water
